DT-1200 Packet Pouch Dispenser

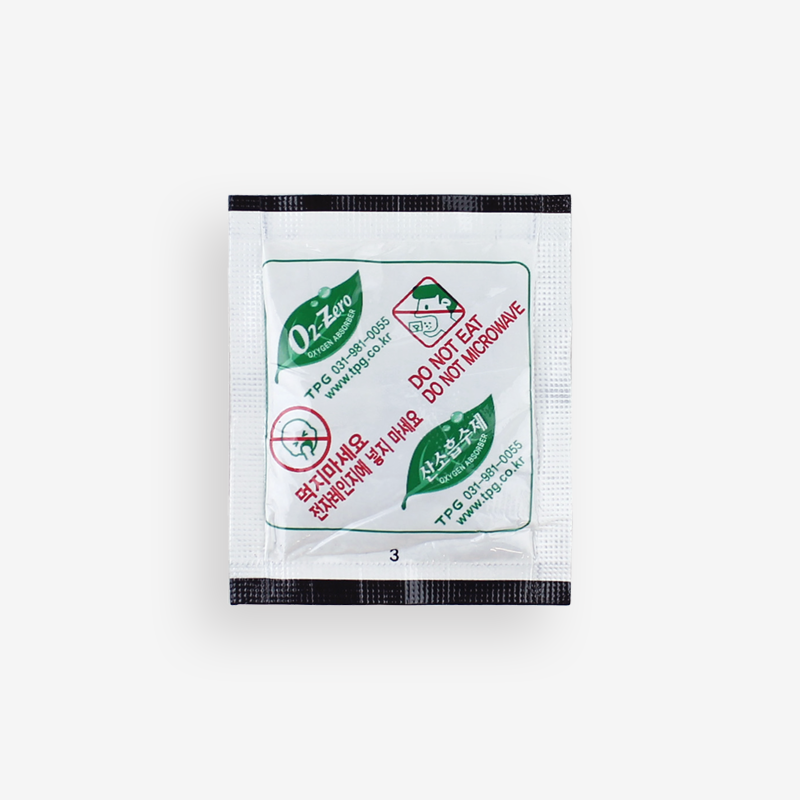

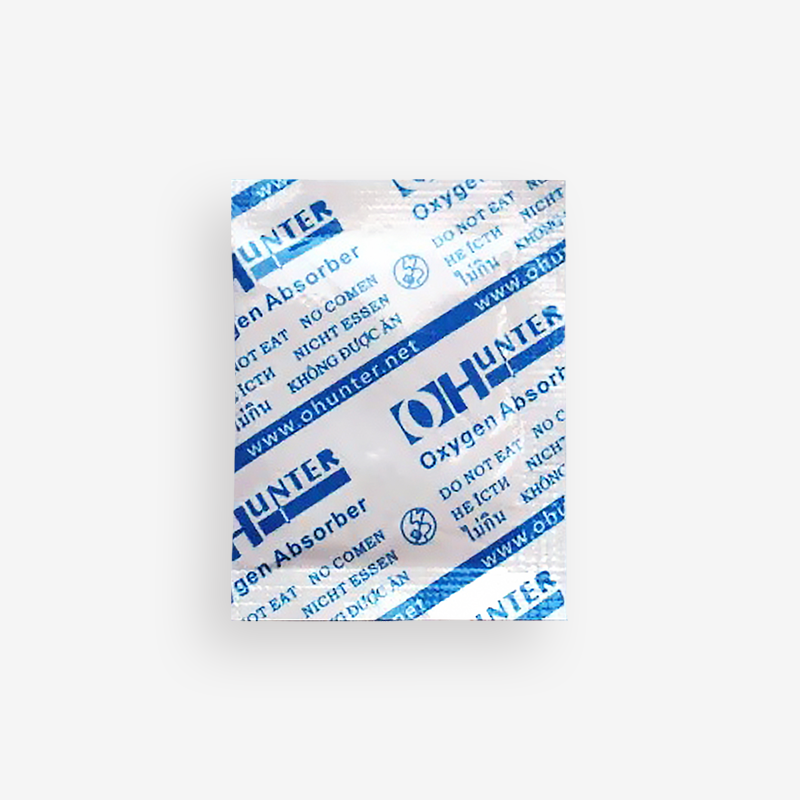

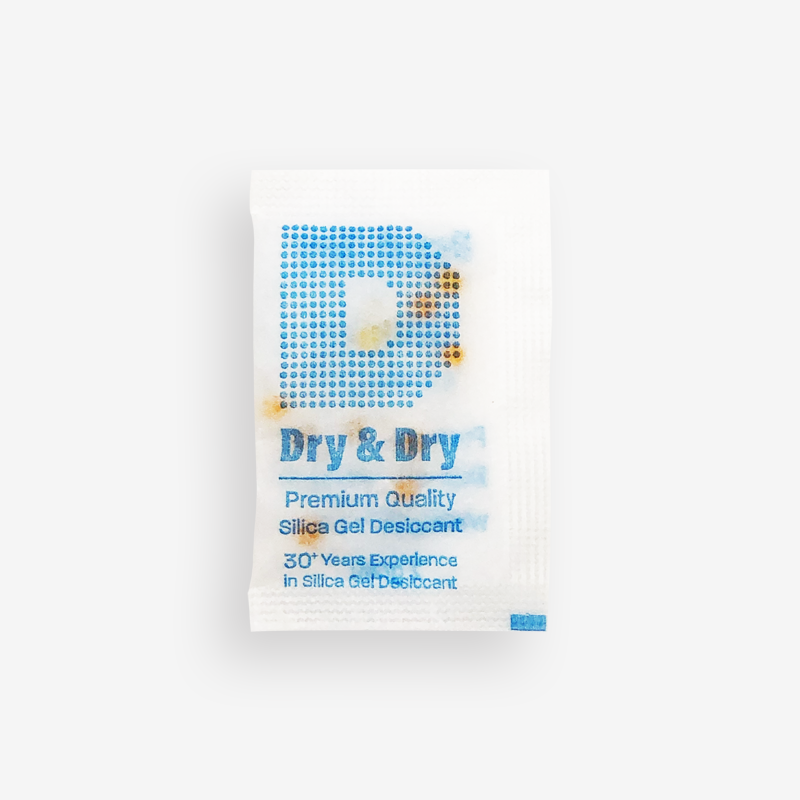

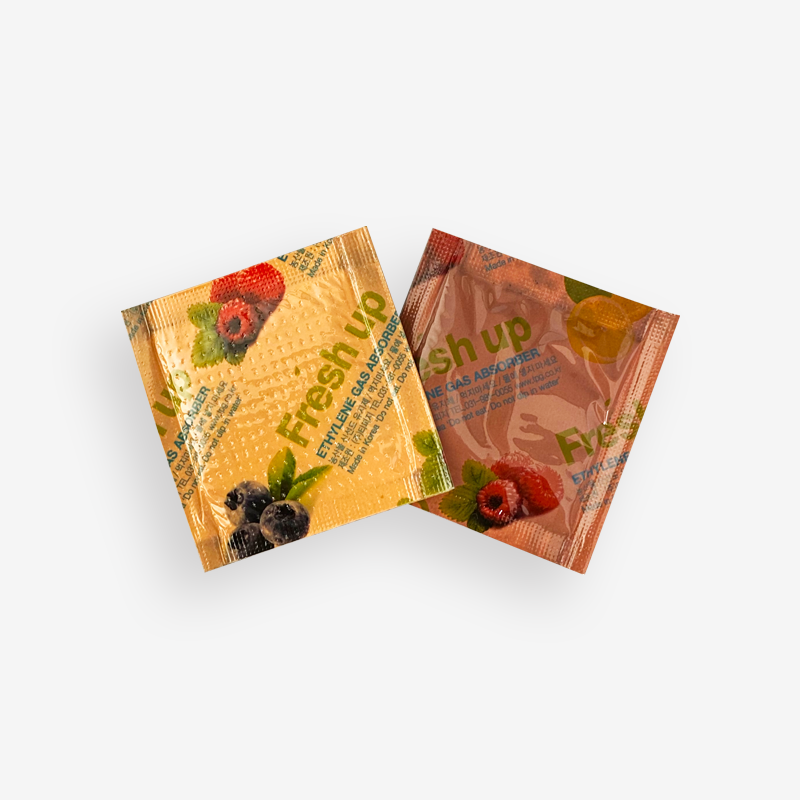

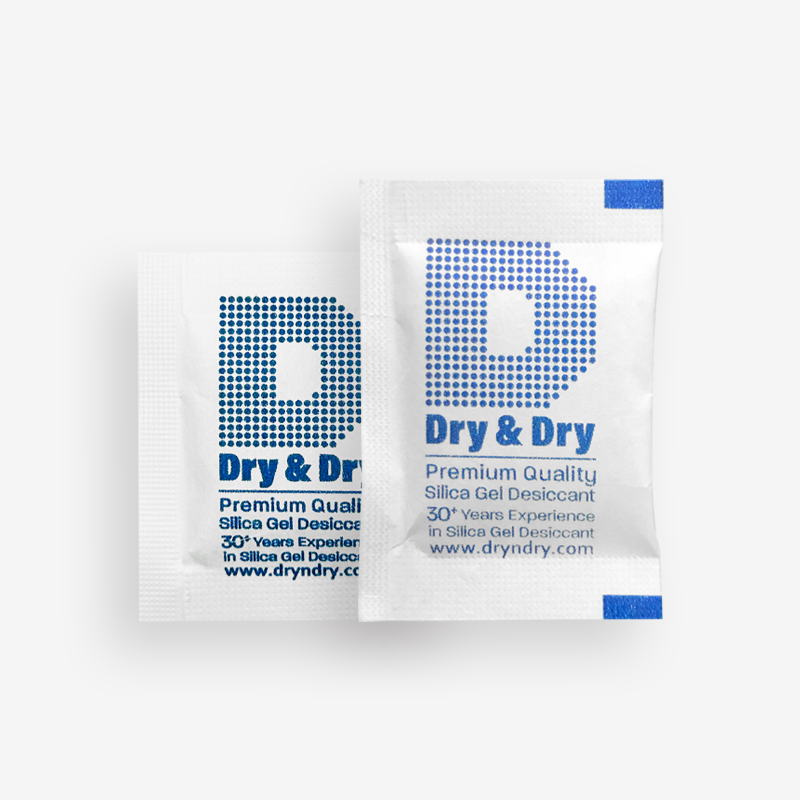

DT-1200 is effective and hygienic in packaging deoxidizer, silica gel, seasoning powder, sauces, etc. that are often inserted manually in the food and pharmaceutical industries. The length of various packaging products can be set by a touch screen.
DT-1200 dispenses up to 250 packs per minute, with precision and minimal noise, controlled by the servo motor. It also does not require an air supply. DT-1200 is easily used in small spaces.
Features
- High speed and accurate distribution with built-in software
- Touch screen for easy setup and operation
- Easy to use Start and Stop buttons.
- Easy to change to different packets even during the operation.
- Servo motor for cutting and stepper motor for feeding are used for high-speed operation with minimal noise.
- The discharge sensor and mark sensor prevent inaccurate cutting.
- Easy replacement of cutter and easy maintenance
- The compact design of the product makes it easy to install and operate even in a narrow space or existing packaging line.
- Optional devices can be attached easily by built-in software (Vibrator, Pouch and Detector, Adjustable Stand, etc.)

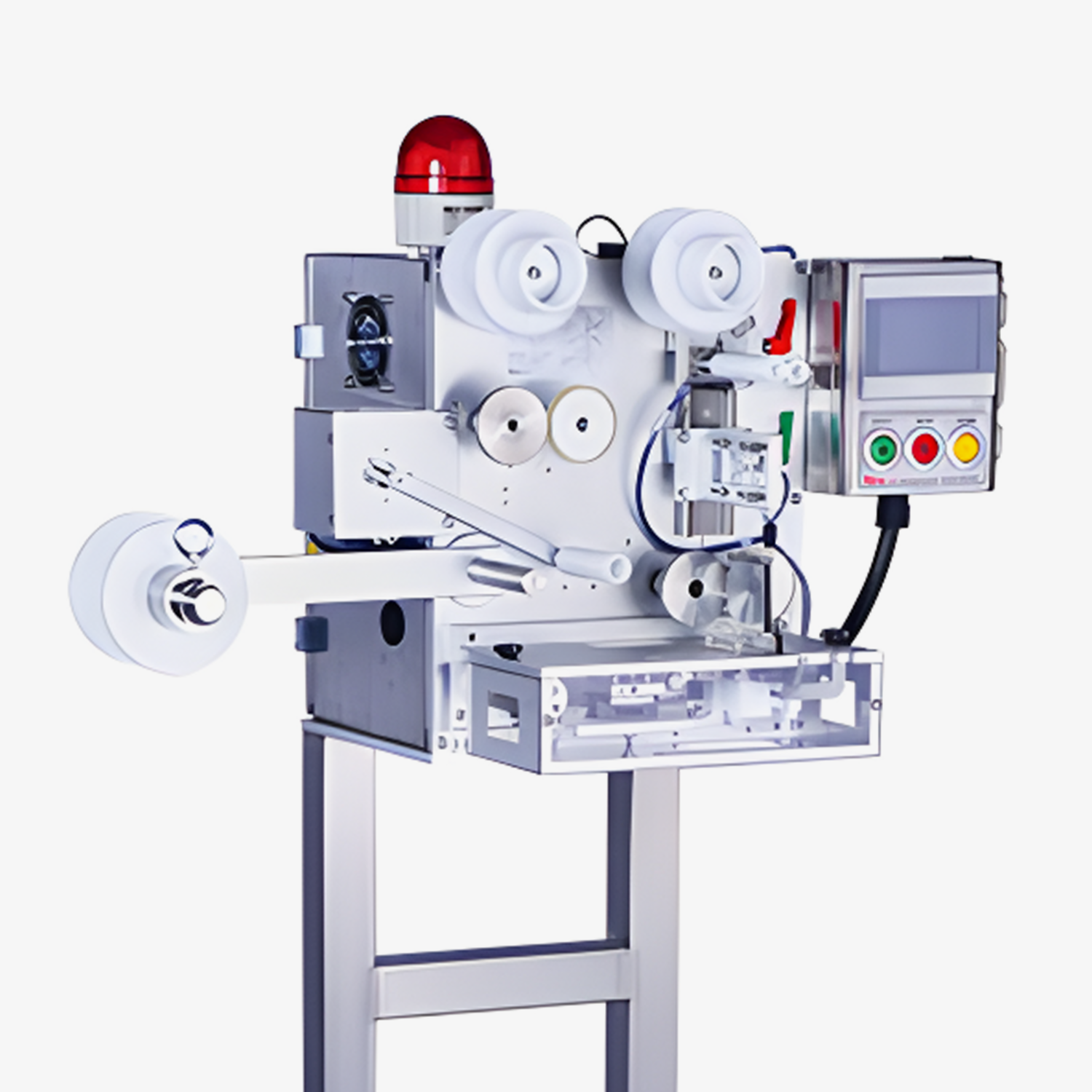

DT-1200A
Mount the product wound with rolls on the rack to feed through automatic cutting.
Loading Capacity : 250 ppm
Dimension (mm) : 380(W)x460(H)x420(D)
Weight : 77 lbs
Power Supply : AC 220V 50/60Hz 1 Phase
Pouch Size : 20~90mm(L) x 10~200mm(L) x Max 15mm(T)
AC Servo Motor : 200W
Stepping Motor : 200W
Touch Panel : 4.3 inch
Safety Sensor : Mark, Thick, Discharge
Support Heavy Roll Packet : Yes
Support Box Type Packet : Yes
Support Pillow Packet : No

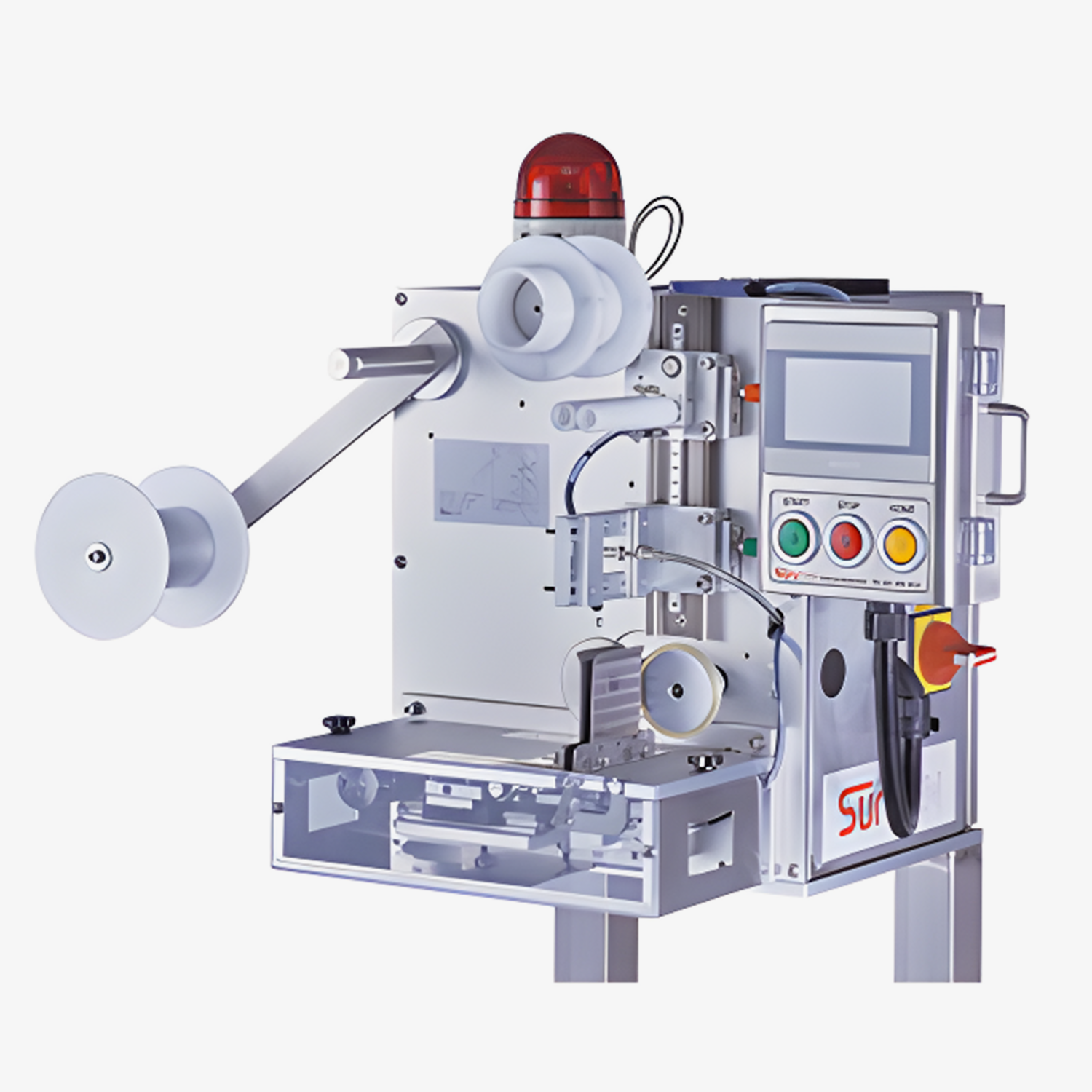

DT-1200B
Feed light products such as silica gel and gas absorbent contained in a box.
Loading Capacity : 250 ppm
Dimension (mm) : 380(W)x460(H)x420(D)
Weight : 77 lbs
Power Supply : AC 220V 50/60Hz 1 Phase
Pouch Size : 20~90mm(L) x 10~200mm(L) x Max 15mm(T)
AC Servo Motor : 200W
Stepping Motor : 200W
Touch Panel : 4.3 inch
Safety Sensor : Mark, Thick, Discharge
Support Heavy Roll Packet : Option*
Support Box Type Packet : Yes
Support Pillow Packet : No

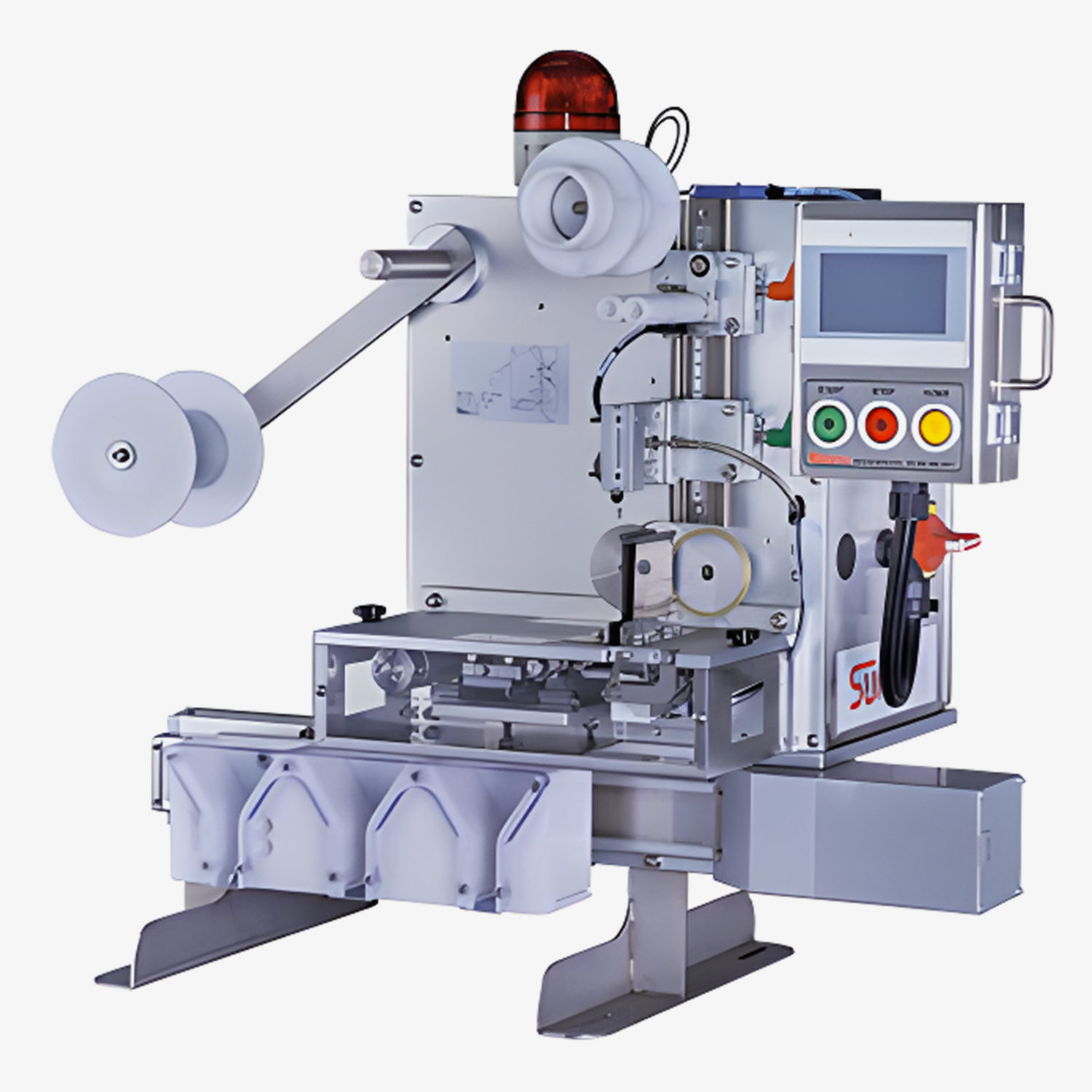

DT-1200C
Equipment that feeds 2 rows, 3 rows, and 4 rows of deoxidized material or silica gel at once with one unit of feeder.
Loading Capacity : 150 ppm
Dimension (mm) : 500(W)x460(H)x420(D)
Weight : 99 lbs
Power Supply : AC 220V 50/60Hz 1 Phase
Pouch Size : 20~90mm(L) x 10~200mm(L) x Max 15mm(T)
AC Servo Motor : 200W
Stepping Motor : 200W
Touch Panel : 4.3 inch
Safety Sensor : Mark, Thick, Discharge
Support Heavy Roll Packet : Yes
Support Box Type Packet : Yes
Support Pillow Packet : No
